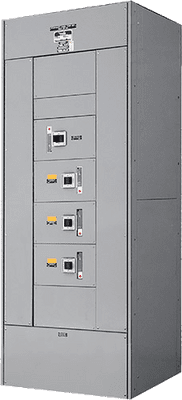

Benjamini Smart Switchboard
Description
An effective addition to your Energy Management Systems. The Benjamin Smart Switchboard provides line-side power metering for all breakers.
Features
- Metering available on Mains and Branch Circuits

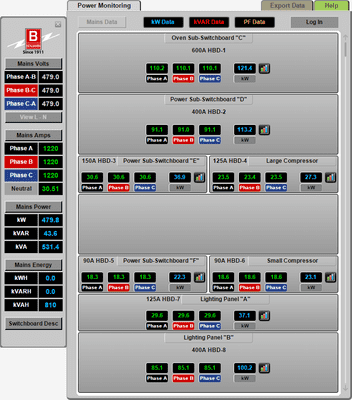

- Power use is logged allowing you to locate high use circuits, monitor changes, and diagnose problems.

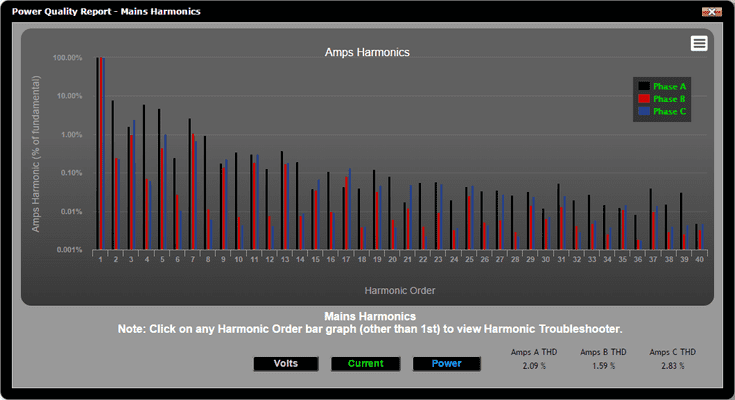

- Use Harmonic Analysis to help diagnose problems.
- Industry Standard communication protocols are supported for integration with Building Management Systems or use the built in scheduler to control circuits.
Specifications

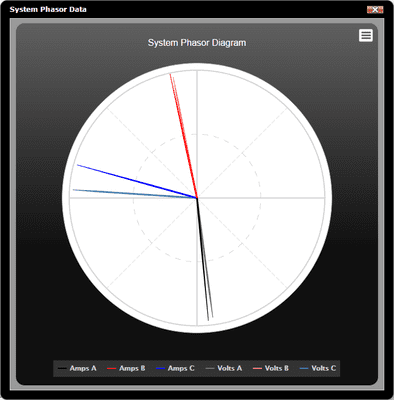

| Voltage Ratings | 120/240V 1Ø 3W | 120/240V 1Ø 4W | 208Y/120V 3Ø 4W |
|---|---|---|---|
| 240V 3Ø 3W | 480Y/277V 3Ø 4W | 480V 3Ø 3W |
| AIC Ratings | 10kAIC to 200kAIC @240V |
|---|---|
| 14kAIC@480Y/277V to 100kAIC@480V | |
| Power Measurement | Mains Current Accuracy | 2% of reading from 1% to 10% of nominal rated current 1% of reading from 10% to 100% of nominal rated current |
|---|---|---|

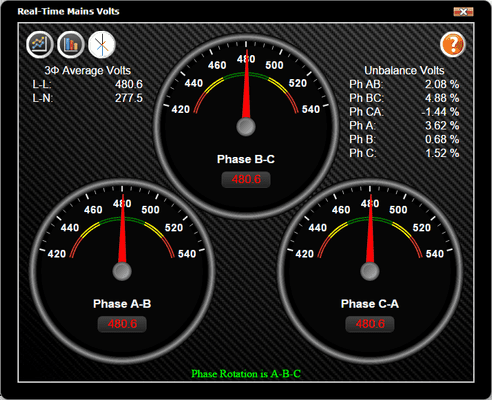

| Mains Voltage Accuracy | 0.2% of reading from 90-600 VAC Line to Neutral | |
| Mains Power Data | Voltage, Current, Hz, W, VA, VAR, PF, WHrs, VAHrs, VARHrs | |
| Branch Current Accuracy | 1% of reading from 0.15 Amps to 0.25 Amps 0.5% of reading from 0.25 Amps to 400 Amps | |
| Branch Circuit Data | Voltage, Current, W, VA, VAR, PF, WHrs, VAHrs, VARHrs | |
| Harmonic Analysis | Fundamental through 40th harmonic: Voltage, Current, Real Power | |
| Data Update Rate | 1 second for all real-time values |
| Mains Configurations | Lugs | 100 to 3000 Amp |
|---|---|---|
| Breaker | 100 to 2500 Amp |
| Branch Circuit Breaker Options | 1 Pole | 15 Amp to 150 Amp |
|---|---|---|
| 2 Pole | 15 Amp to 600 Amp | |
| 3 Pole | 15 Amp to 2500 Amp |
| Communications | Modbus 485, Modbus TCP/IP, Bacnet IP, EtherNet/IP |
|---|
