Smart Distro Touring Panel


Description

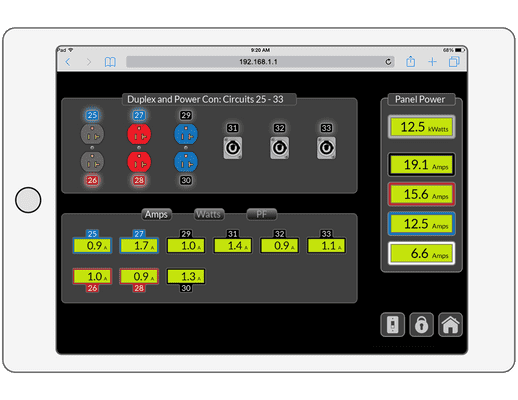

Portable Power Distribution offering remote on/off circuit control via standard Wi-Fi using your Laptop, Tablet or Smart Phone.

Features

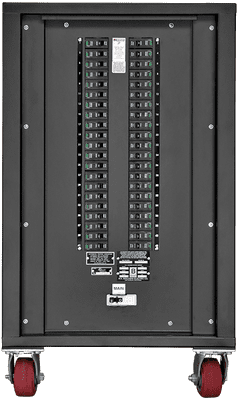

  • Utilizes Eaton's remotely switchable circuit breakers.
  • Metering on Mains (standard) and Circuits (optional).
  • Built to Order - factory assembled and tested to your configuration.

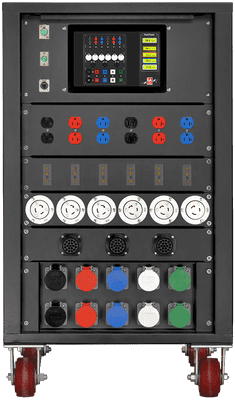

  • Optional Touchscreen for local control and monitoring.

Connectors

  • Cam-Lok

    input and pass-through, single or double neutrals
  • Socapex™

    SL419 Compatible, 120V and 208V
  • Twist Lock

    120V and 208V
  • Edison

    optional GFI protection
  • PowerCON

    120/240VAC, 20A
  • Bates

    120V and 208V
*Customer specified connectors available upon request

Specifications

Voltage Ratings120/240V 1Ø 3W208Y/120V 3Ø 4W480Y/277V 3Ø 4W
AIC Ratings65kAIC@240V Fully Rated to 100kAIC Series Rated
14kAIC@480Y/277V Fully Rated to 65kAIC Series Rated
Branch Circuit Breaker Options1 PoleRatings: 15A, 20A, 30A Controlled, 15A to 100A non-controlled
2 PoleRatings: 15A, 20A, 30A Controlled, 15A to 100A non-controlled
3 PoleRatings: 15A to 100A non-controlled
Mains ConfigurationsLugsRatings: 1100A, 225A, 400A, and 600A Rated Connectors*: Cam-Lok™ Single Pole Connectors
Breaker60 Amps to 600 Amps
*Customer specified connectors available upon request
Power MeasurementMains Current Accuracy1% of reading from 1% to 100% of nominal rated current
Mains Voltage Accuracy0.5% of reading from 90 to 600 VAC Line to Neutral
Mains Power DataVoltage, Current, Watts, PF, VA, VAR, HZ, WHrs, VAHrs, VARHrs
Branch Current Accuracy1% of reading from 0.15 Amps to 100 Amps
Branch Circuit DataCurrent, Watts, PF, VA, VAR, WattHrs, VAHrs, VARHrs
Data Update Rate1 second for all real-time values
CommunicationsDMX-512, Modbus 485, Modbus TCP/IP, Bacnet IP, Web Server
