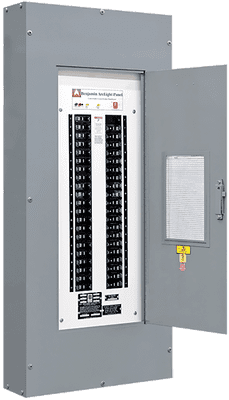

Panelboards with Smart Control
Description
An efficient addition to your Lighting Controls and Energy Management Systems. The Breaker Control Panel uses remote controllable breakers which add key functionality to your energy reduction programs.
Features

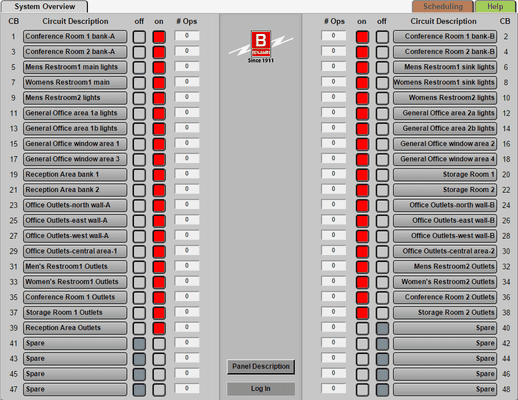

- Remotely operate circuit breakers via manual or automated control schemes
- Breakers turn on sequentially to reduce in-rush current impacts from LED driver loads

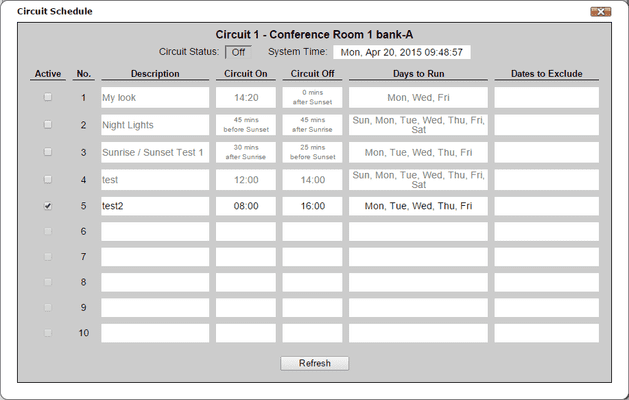

- Industry Standard communication protocols are supported for integration with Building Management Systems or use the built in scheduler to control circuits.
- Built to order, customized to your specifications, including retrofit upgrades to existing enclosures.
Specifications
| Voltage Ratings | 120/240V 1Ø 3W | 208Y/120V 3Ø 4W | 480Y/277V 3Ø 4W |
|---|
| AIC Ratings | 65kAIC@240V Fully Rated to 100kAIC Series Rated |
|---|---|
| 14kAIC@480Y/277V Fully Rated to 65kAIC Series Rated | |
| Branch Circuit Breaker Options | 1 Pole | Ratings: 15A, 20A, 30A Controlled, 15A to 100A non-controlled |
|---|---|---|
| 2 Pole | Ratings: 15A, 20A, 30A Controlled, 15A to 100A non-controlled | |
| 3 Pole | Ratings: 15A to 100A non-controlled |
| Mains Configurations | Lugs | Ratings: 100A, 225A, 400A, and 600A Rated |
|---|---|---|
| Breaker | Ratings: 100A, 225A, 400A, and 600A Rated |
| Communications | DMX-512, Modbus 485, Modbus TCP/IP, Bacnet IP, Web Server |
|---|
